The System

Roofing systems or infilling of metal structures that use sandwich panels are to be complemented with special finishing elements which are necessary for water seal, fastening systems and aesthetic finish. ISOMEC recommends to its customers all the solutions adopted by professionals. All standard elements are in pre-painted 0.5 mm-thick steel (pre-painted aluminium or copper thickness 0.6 mm are supplied on demand).

  • Head cover
  • Contoured ridge
  • Ridge strip
  • Ridge strip seal
  • Wall ridge
  • Side profile
  • Eaves gutter with downstand
  • Valley gutter
  • Finishing profile
  • Corner joints

Dettagli Tecnici

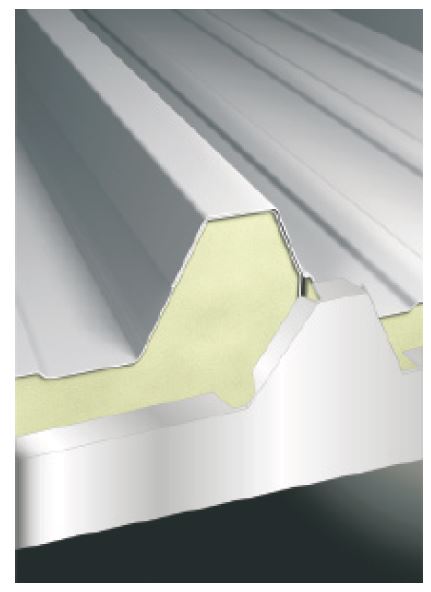

Head cover:

Roof panel head closing element in eaves gutter areas. It adds perfect aesthetics and increased protection in the end part of visible roofing. It is available in any thickness and colour.

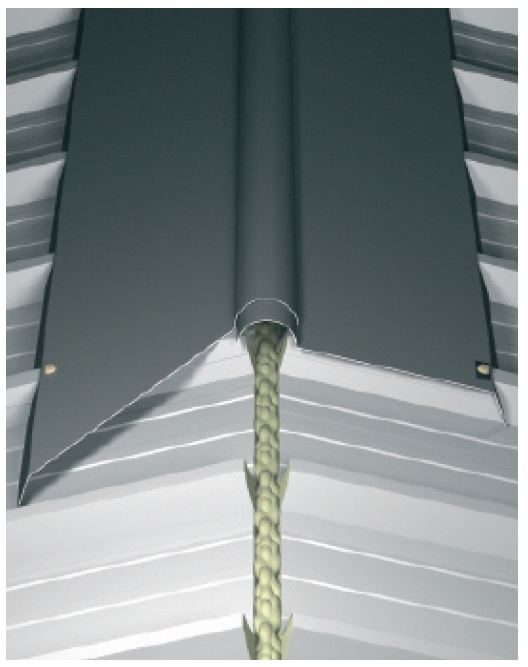

Contoured ridge:

double hinged element to connect the two roof pitches, contoured and die-cut, produced with three or five corrugations. Standard dimensions length 4100 mm, 660 mm overall length. Colour: like the panel’s external surface.

Ridge strip:

single contoured element to join the two roof pitches onto metal structures in the lower area. Standard dimensions length 4100 mm, 400 mm overall length. Colour: like the panel’s external surface.

Wall ridge

Single contoured element to join the vertical wall with the roof pitch onto metal structures in the lower area, contoured and die-cut with three or five corrugations. The lower finishing profile is also available. Standard dimensions length 4100 mm. Colour: like the panel’s external surface.

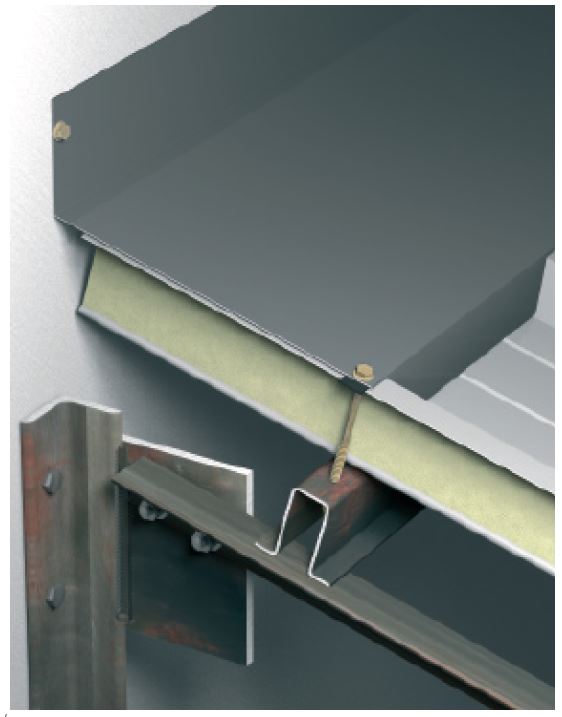

Side profile:

Used to finish roofing side infilling or as downstand external sheet metal work.

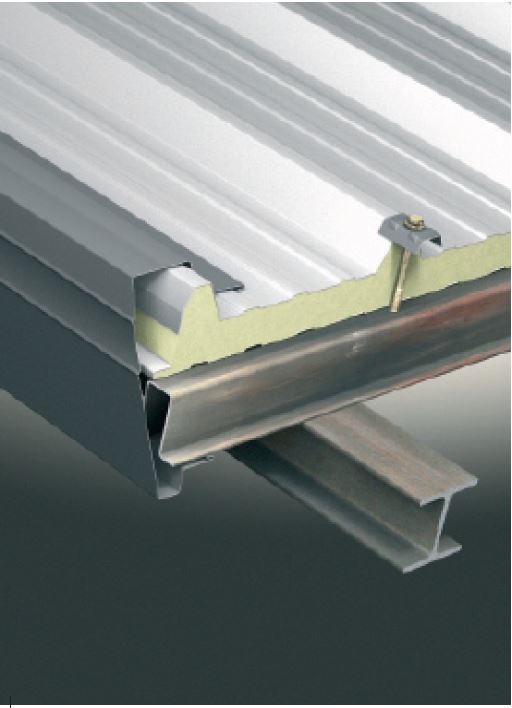

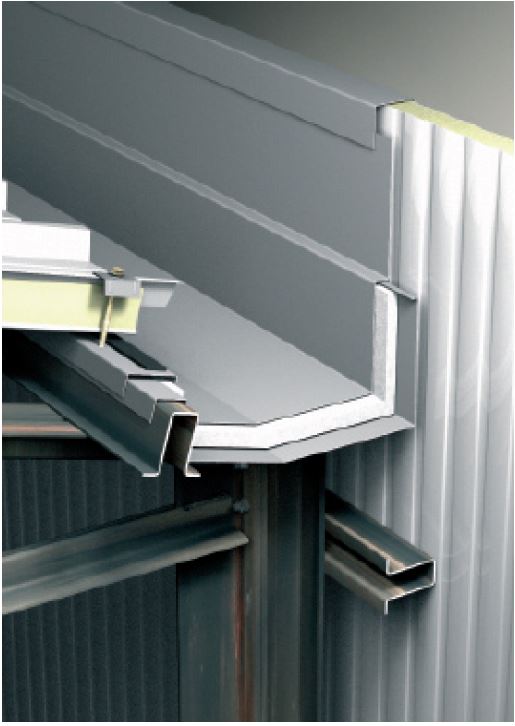

Eaves gutter with downstand:

Accessory for roofing, canopies, porticoes with short pitches, in the version with downstand and under-gutter for side outlet funnels.

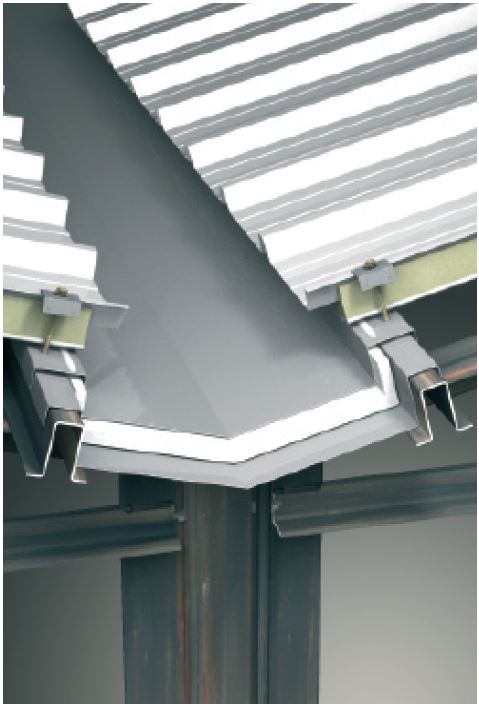

Valley gutter:

Accessory for roofing, canopies, porticoes with short pitches, in the valley version for middle outlet funnels.

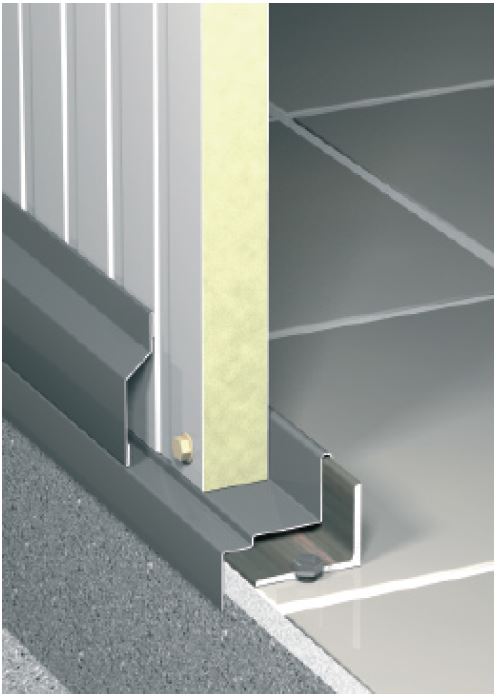

Finishing profile:

Used as bases in external walls and internal partitions.

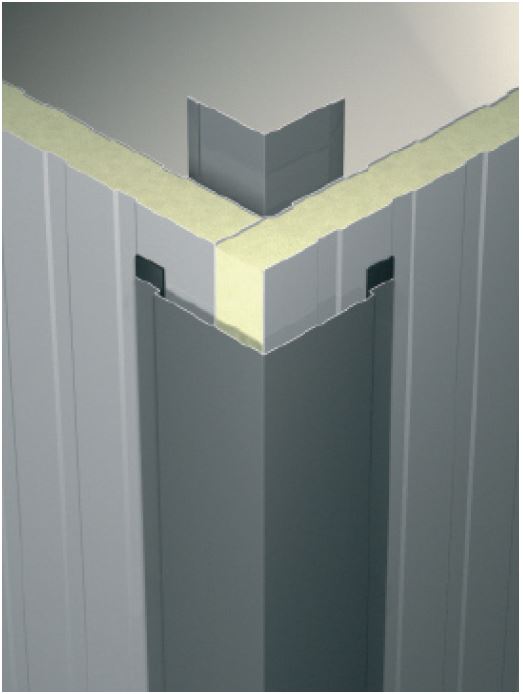

Corner joints

Used as internal or external finishing profile for vertical walls.
